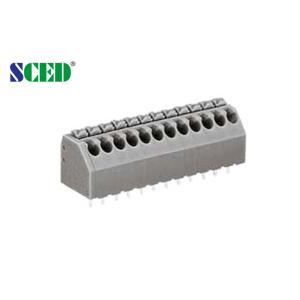

300V PCB Spring Terminal Block

Name: 300V PCB Spring Terminal Block
Brand: SCED
Price: 1 USD

Place of Origin : Shenzhen, China

Brand Name : SCED

Certification : UL, CE

Model Number : TJ381-03-D6

MOQ : 500

Price : Get latest price

Packaging Details : Standard Export Carton

Delivery Time : 7-20 working days

Payment Terms : T/T

Supply Ability : 1KK poles each monthly

Applications : PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control

Color : Grey

Number of Contacts : 2P-28P

Pitch : 3.50mm

Rated Current : 5A

Rated Voltage : 300V

Type : Spring Terminal Block,Screwless terminal blocks, Electrical terminal Blocks

Wire Range : 16-22

Contact Now

300V PCB Spring Terminal Block

□Right angle wire inlet; □Vertical wire inlet; ■45 degree wire inlet
■Single Deck; □Double decks; □Triple decks
Standard color: Grey. Other colors also available, please refer to below How to Order and select the color you want.

How to order:
300V PCB Spring Terminal Block

Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control,
Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment,
Military, Elevator, etc..

Parameter and Drawing Specifications:

UL Technical Data	B	C	D
Rated Voltage / Current V/A	300/5
Wire Range AWG	16-22
IEC Technical Data
Overvoltage Category	Ⅲ	Ⅲ	Ⅱ
Contamination Class	3	2	2
Rated Voltage / Current V/A	320 / 5	400 / 5	630 / 5
Rated Surge Voltage KV	4	4	2.5
Rated Connecting Capacity mm²	1.5
Material
Insulation Material / Inflammability Class	PA66 / UL94, V-0
Spring / Plating
Terminal / Plating	Phosphor Bronze / Tin Plated
Other Data
PCB Hole Diameter mm	φ1.2
Stripping Length mm	8-9

300V PCB Spring Terminal Block

Competitive Advantage:

1. Stable good quality

2. Competitive price

3. Quickly response

4. Full range products for selection

5. Flexible to design the exact part per customers’ demand
