7.62mm 24 Poles Electrical Barrier Terminal Block for Server Site 300V 15A

Name: 762mm 24 Poles Electrical Barrier Terminal Block for Server Site 300V 15A
Brand: SCED
Price: 1 USD

China 7.62mm 24 Poles Electrical Barrier Terminal Block for Server Site 300V 15A wholesale

Place of Origin : Shenzhen, China

Brand Name : SCED

Certification : UL, CE

Model Number : TB762-01V

MOQ : 500

Price : Get latest price

Packaging Details : Standard Export Carton

Delivery Time : 7-20 working days

Payment Terms : T/T

Supply Ability : 1KK poles each monthly

Type : Barrier Terminal Block,Power terminal blocks, Electrical terminal Blocks

Pitch : 7.62mm

Number Of Contacts : 2P-24P

Wire Range : 14-22

Rated Voltage : 300V

Rated Current : 15A

Color : Black

Applications : PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control

Contact Now

Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control,
Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military,
Elevator, etc..

7.62mm 24 Poles Electrical Barrier Terminal Block for Server Site 300V 15A 2P-24P, Power Terminal Blocks

□Right angle wire inlet; ■Vertical wire inlet; □45 degree wire inlet
■Single Level; □Double levels; □Triple levels
Standard color: Black. Other colors also available, please refer to below How to Order and select the color
you want.
Barrier terminal blocks, Power terminal blocks, Electrical terminal Blocks, Terminal blocks suppliers

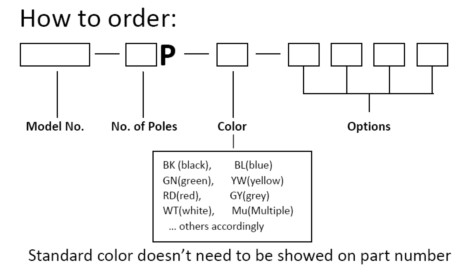

How to order:

7.62mm 24 Poles Electrical Barrier Terminal Block for Server Site 300V 15A

Parameter and Drawing Specifications:

UL Technical Data	B	C	D
Rated Voltage / Current V/A	300/15		300/10
Wire Range AWG	14-22		14-22
IEC Technical Data
Overvoltage Category	Ⅲ	Ⅲ	Ⅱ
Contamination Class	3	2	2
Rated Voltage / Current V/A	250 / 24	320 / 24	400 / 24
Rated Surge Voltage KV	4	4	4
Rated Connecting Capacity mm²	2.5
Material
Insulation Material / Inflammability Class	PBT / UL94, V-0
Terminal / Plating	Brass / Tin Plated
Screw / Plating	Steel / Nickel Plated
Other Data
PCB Hole Diameter mm	φ1.5
Stripping Length mm	7-8
Screw / Torque / lbf.in	M 3 / 5-7

7.62mm 24 Poles Electrical Barrier Terminal Block for Server Site 300V 15A

Competitive Advantage:

1. Stable good quality

2. Competitive price

3. Quickly response

4. Full range products for selection

5. Flexible to design the exact part per customers’ demand
